Plasma Txiav Video ntawm 4x8 CNC Plasma Table Cutter:
Kev Taw Qhia luv luv ntawm Programmable Plasma Cutter:

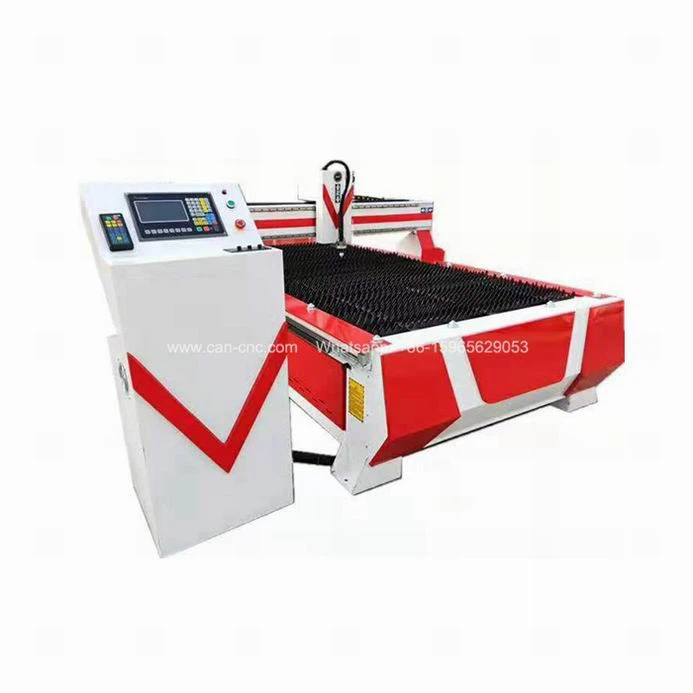

Qhov no 4x8 CNC Plasma Cutter yog nrog high-speed, precision, compact integrated rau hauv CNC ntshav txiav system, Nws yog tshwj xeeb rau carbon steel phaj, txhuas phaj, tooj liab phaj, stainless hlau phaj thiab lwm yam hlau daim hlau nyob rau hauv tej graphics ceev plasma txiav. Feem ntau, tsis tas yuav tsum tau ua cov txheej txheem nto tom qab txiav, zoo, tsis muaj dross thiab burrs. Nws tuaj yeem hloov qhov kev xuas nrig ntaus, Cov khoom no nrog cov qib siab ntawm automation, kev ntseeg siab, siab precision, tsis tshua muaj nqi, ua haujlwm yooj yim thiab txij nkawm, thiab lwm yam.
Qhov no compact CNC plasma rooj yog tshwj xeeb tshaj yog haum rau tsis siv neeg txiav ntawm nruab nrab thiab nyias non-ferrous sheet hlau, nws yog dav siv nyob rau hauv machinery manufacturing, nws pib qhov chaw, khoom kho vajtse, khoom ua si, advertising thiab lwm yam industries nrog tus nqi zoo. Lub 4x8 CNC Plasma Cutter yog tsim rau kev txiav cov ntawv tshaj tawm, tsim logo, cov khoom siv kho kom zoo nkauj, thiab ntau yam khoom siv hlau. Nws tuaj yeem siv rau cov ntawv hlau, aluminium ntawv, ntawv galvanized, txias steel daim hlau thiab yuav luag tag nrho cov hlau phaj.
Main Configuration Instructions of Programmable Plasma Cutter:
1. Siab zog plasma arc zog, kub, ceev ceev.
2. Lub teeb beam tsim, zoo rigidity, lub teeb yuag thiab me me txav inertia.
3. Me me txiav qhov sib txawv, tsis muaj residua.
4. Plasma txiav tshuab Y axis txais ob lub cav nrog ob tus neeg tsav tsheb. XYZ axis puag ncig rail, txav tau yooj yim, nrog qhov raug siab. (Kev xaiv: square rail)
5. Zoo heev txiav 3D illuminated ntawv rau kev tshaj tawm thiab cov ntawv channel ntawm cov hlau nplaum saum npoo.
6. Plasma Cutter ua hauj lwm ua ke nrog lwm cov cav tov tshaj tawm, xws li CNC Router thiab lwm yam kev txhim kho kev ua haujlwm.
Daim ntawv thov ntawm Plasma Gas Cutting Machine:
Lub tshuab txiav plasma yog siv dav hauv kev tshaj tawm kev lag luam, kos duab thiab khoom siv tes ua, txhua yam khoom siv hlau, xws li Carbon Steel, Stainless hlau, hlau alloy, caij nplooj ntoos hlav steel, tooj liab phaj, txhuas phaj, kub, nyiaj, Titanium thiab lwm yam hlau. phaj thiab lub cev.
Txiav Projects ua tiav los ntawm Plasma Gas Cutting Machine:
Dav siv nyob rau hauv kev lag luam xws li aerospace, kev ua liaj ua teb machinery, kev tsim kho machinery, railway manufacturing, elevator manufacturing, tshwj xeeb siv tsheb, cuab yeej tsim, roj machinery manufacturing, khoom noj khoom haus machinery, decorated advertising, txawv teb chaws kev pab cuam thiab txhua yam industries txog mechanical manufacturing. Txiav cov ntaub ntawv ntawm CNC plasma txiav tshuab:
Rau hlau, txhuas, galvanized ntawv, ntawv dawb, titanium phaj thiab lwm yam hlau phaj. Kev ua cov plhaub ntawm cov tshuab thiab cov khoom siv hluav taws xob, cov ntawv tshaj tawm, khoom siv tes ua, hlau vaj, tsheb tsim, nkoj tsim, khoom siv hluav taws xob, board txiav.
Technical Specification ntawm Plasma Gas Tej Tshuab:
Qauv | APEXTECH 1325 P |
Table Size | 4 x 8 ft (1300x2500mm) |
Adjustable Qhov siab ntawm kev txiav taws | 100 hli |
Precision ntawm nce thiab poob | ± 0.2 hli |
Precision ntawm kab txoj hauj lwm | ± 0.4mm/10m |
Kis qhov system (X, Y) | Taiwan AMT high-precision, xoom clearance nce linear qhia ntxiv rau khib |
Kis qhov system (Z) | lub arc voltage tswj |
Tswj qhov system | Beijing START ntshav txiav system Shanghai Fangling Plasma txiav system |
Kev txhawb nqa software | Starcam, FASTCAM, AutoCAD |
Kev qhia ntawv | G kod |
Tsav system | Stepper lub cev muaj zog, Panasonic Servo lub cev muaj zog |
Plasma zog | Suav Huayuan hom ntshav plasma zog 40A txog 400A |
Fais fab txiav thickness | 0.3mm txog 30mm |
lav | 1.5 xyoo |
Qhov hnyav tag nrho | 1400 KG |
Pob Loj | 3700 * 2250 * 1700 hli |
Pob thiab xa khoom ntawm CNC Plasma Cutter:
Hais txog kev ntim khoom, txheej txheej hauv huab cua cushion zaj duab xis, nruab nrab txheej ntawm cov dej tsis muaj npog, thiab txheej txheej ntawm stretch zaj duab xis, tag nrho cov no yog cov ntaub ntawv zoo ib puag ncig. Yog tias tsuas yog ib lossis ob lub tshuab xa tuaj, cov thawv ntoo raug pom zoo, uas yog kev nyab xeeb dua. Yog tias xa hauv FCL (Tag nrho cov thawv ntim khoom), nws tuaj yeem ntim tau yam tsis muaj rooj plaub ntoo thiab thauj khoom hauv lub Hoobkas ncaj qha.
Kauj Ruam 1: dej pov thawj wrapping zaj duab xis nrog npuas tiv thaiv hauv txhua lub ces kaum.
Kauj ruam 2: Khoom seaworthy ntoo thawv pob nrog steel siv.
Kauj Ruam 3: Txuag qhov chaw kom ntau li ntau tau rau lub thawv ntim khoom.
Peb Plasma Tej Tshuab Qhov Zoo:
High quality:
1. 15 engineers nrog ntau tshaj 10 xyoo ntawm kev ua haujlwm nplua nuj, ua cov tshuab ua haujlwm siab;
2. Peb hnub thiab 72 teev ntawm kev kuaj thiab tshuaj xyuas, thiab xa cov khoom tom qab lees paub tias lub tshuab tsis muaj teeb meem zoo;
3. 4 QC cov neeg ua haujlwm nruj me ntsis soj ntsuam cov khoom xa tuaj, kev tshuaj xyuas cov txheej txheem thiab kev tshuaj xyuas zaum kawg.
Tus nqi zoo:
1. Peb koom tes nrog cov chaw muag khoom tau ntev, peb tuaj yeem tau txais qhov zoo ntawm cov nqi, ua rau tus nqi ntawm tag nrho cov tshuab sib tw;
2. Peb lub hom phiaj los tsim kev koom tes ntev nrog cov neeg siv khoom tshiab thiab qub, thiab muab cov neeg siv khoom zoo tshaj plaws nrog tus cwj pwm zoo tshaj plaws.
Kev pabcuam zoo:
1. Lus Askiv phau ntawv thiab yees duab ntawm lub tshuab ua haujlwm thiab kev saib xyuas, piav qhia cov kauj ruam ua haujlwm kom ntxaws;
2. Cov neeg ua haujlwm pabcuam tomqab muag, muab kev pabcuam 24 teev hauv online;
3. Kev cob qhia pub dawb thiab kev qhia ua haujlwm nyob rau ntawm qhov chaw yuav raug muab kom tsis txhob muaj kev txhawj xeeb ntawm cov neeg siv khoom.
Cov lus pom zoo los ntawm peb cov neeg siv khoom:
Product Qualification:
Cim npe nrov: Tuam Tshoj 4x8 cnc plasma cutter lwm tus neeg, manufacturers, hoobkas
